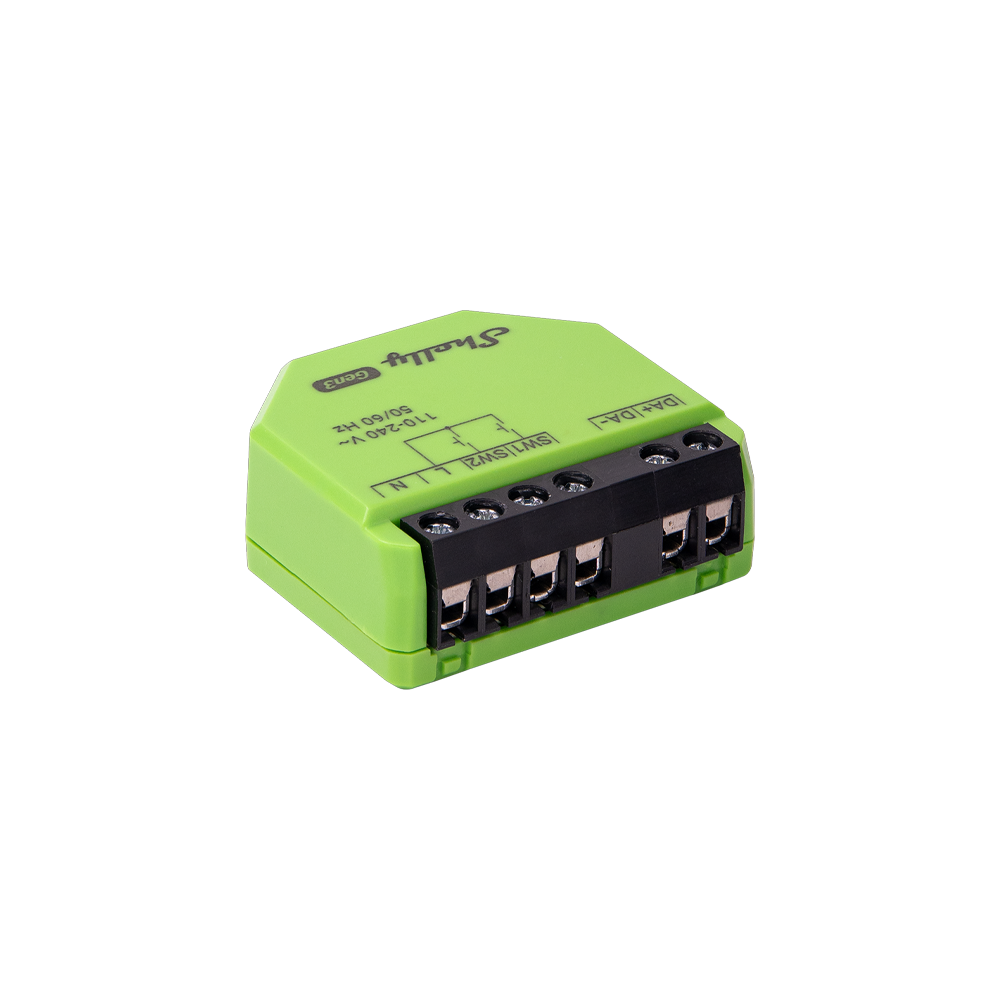

Shelly DALI Dimmer Gen3

Overview

Shelly DALI Dimmer (the Device) is a gateway device between Shelly ecosystem and APIs and a DALI network of lights. It can control DALI capable light sources that contain DALI control gear.

In terms of DALI it is a single-master application controller, supporting LED control gear (Part 207), which does not share the bus with other DALI control devices. Shelly DALI Dimmer controls all connected DALI control gear as a single group with broadcast messages.

The Device contains a bus power supply with possibility to control up to X non-powered bus units.

The Shelly DALI Dimmer can be accessed, controlled, and monitored remotely from any place where the User has internet connectivity, as long as it is connected to a Wi-Fi router and the Internet.

It has an embedded Web Interface which can be used to monitor and control the Device, as well as adjust its settings.

Key Features

• DALI application controller: Supports DALI bus control in a single-master configuration of direct or indirect DALI control gear lights.
• DALI features: Control light intensity of attached control gear (DT6). Color temperature control is not supported.
• DALI power on default : off
• DALI on bus failure : turn on at 100%
• Shelly Plus Add-on compatible: The Device supports connection with the sensor interface to the Shelly Plus devices.
• Switch/Button input mode: Allows flexible input control through switches or buttons.
• One/dual button dimming control: Allows to use the full functionalities of the Device for dimming control with any wall switch configuration.
• Night mode: Enables to set a specific brightness of input lights during nighttime.
• Min/Max brightness: Reframes the range of the dimming signal to get more precise brightness control on the output.
• Button fade rate: Controls how quickly the output brightness changes while holding the button(s).
• Transition duration: Controls the time for dimming from 0 to 100 %.
• Weekly schedules: Supports daily schedules and routines, including setting of brightness, transition duration, and flip value of the dimming signal.
