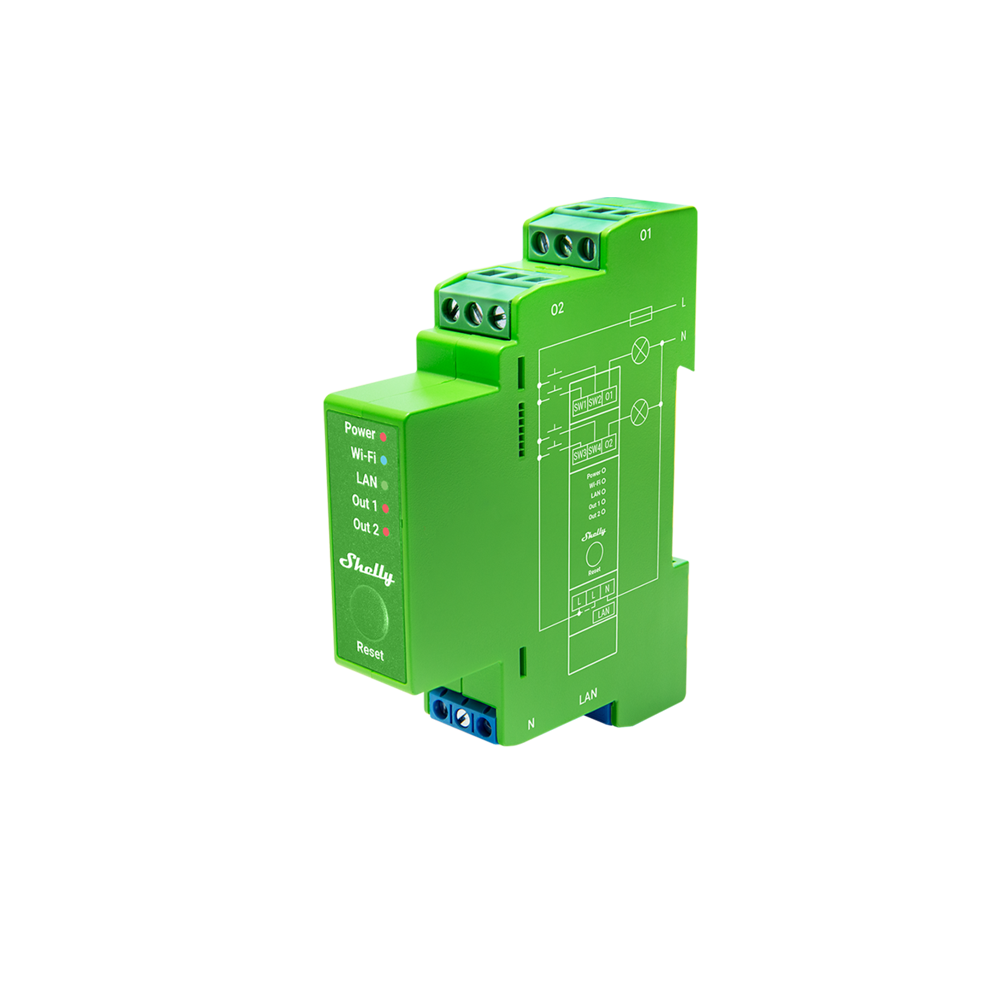

Shelly Professional 2-channel DIN rail smart dimmer with power monitoring

Overview

Shelly Pro Dimmer 2PM (the Device) is a DIN-rail mountable, two-channel smart dimmer. It can work standalone in a local Wi-Fi network or it can also be operated through cloud home automation services. The Device can be accessed, controlled, and monitored remotely from any place where the User has internet connectivity, as long as it is connected to a Wi-Fi router and the Internet. Shelly Pro Dimmer 2PM has an embedded Web Interface which can be used to monitor and control the Device, as well as adjust its settings.

Key Features

• DIN rail mountable
• Automatic dimming calibration: Provides smooth dimming throughout the entire range.
• Switch/Button input mode: Allows flexible input control through switches or buttons.
• One/dual button dimming control: Allows to use the full functionalities of the Device for dimming control with any wall switch configuration.
• Night mode: Enables to set a specific brightness of input lights during nighttime.
• Min/Max brightness: Reframes the range of the dimming signal to get more precise brightness control on the output.
• Button fade rate: Controls how quickly the output brightness changes while holding the button(s).
• Transition duration: Controls the time for dimming from 0 to 100 %.
• Warm-up : Set brightness and time that will create an initial impulse for light bulbs that need more energy to wake up when the brightness is below 10%.
• Gamma correction : adjusts the control signal so that each step in dimming appears evenly spaced in brightness to prevent lights from seeming too jumpy at low levels or too compressed at high levels. Range: 0.4 - 4.0. Default value (no correction): 1.0
• Safety : Оver current/voltage/power protections
• Weekly schedules: Supports daily schedules and routines, including setting of brightness, transition duration, and flip value of the dimming signal.
