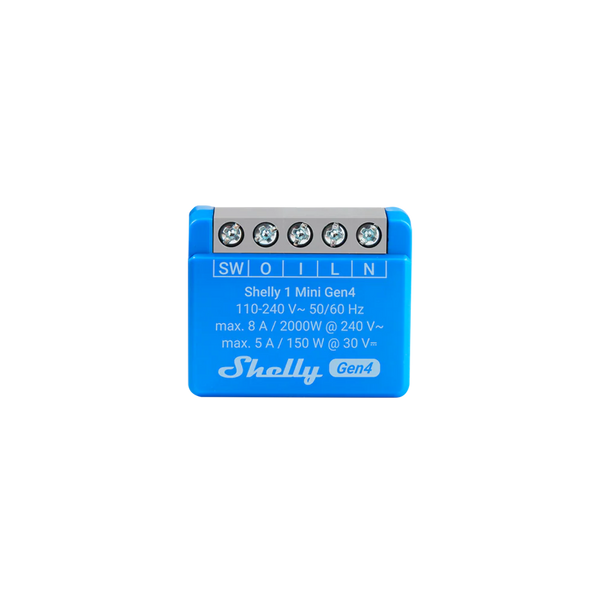

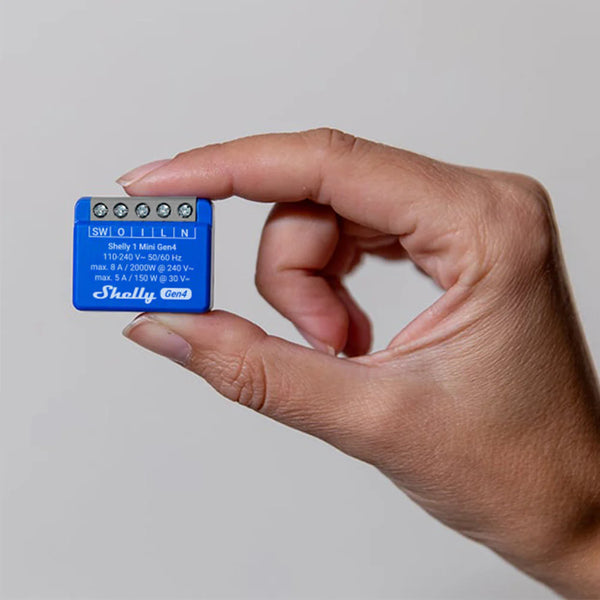

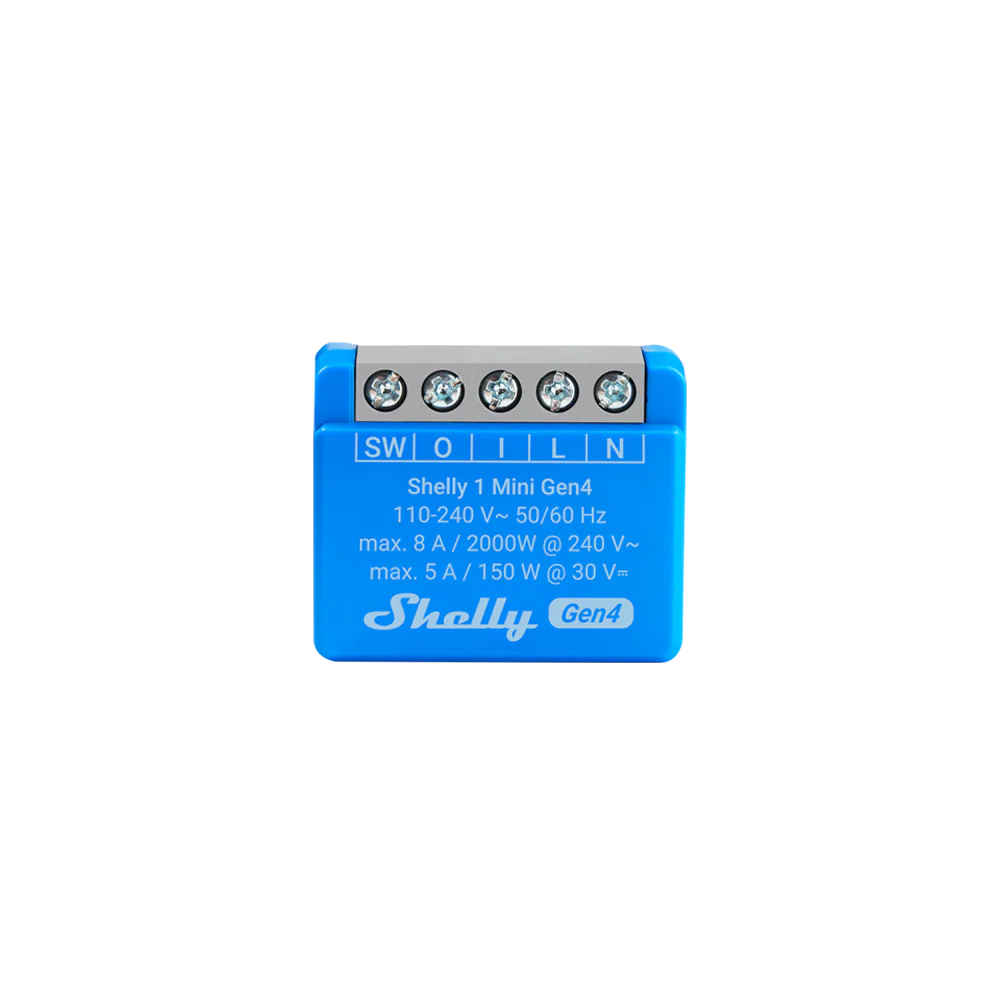

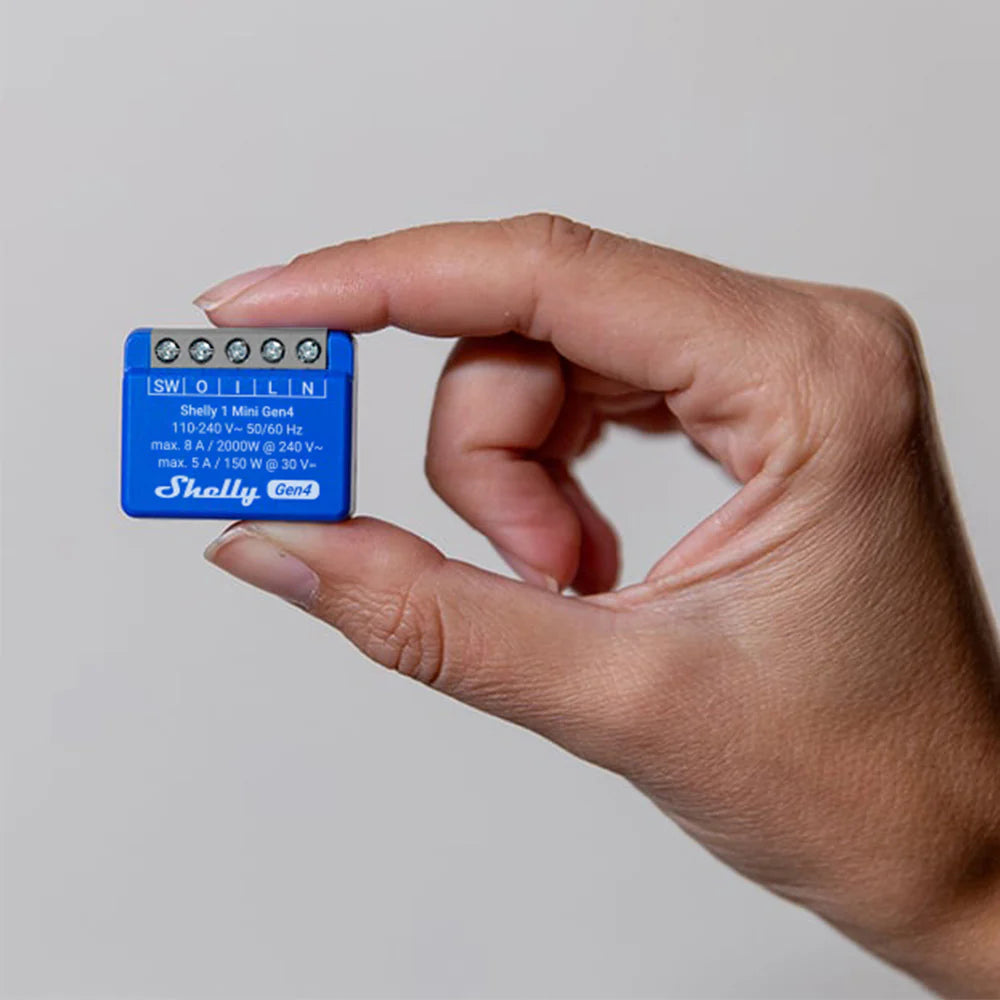

Shelly 1 Mini Gen4

Shelly 1 Mini Gen4

$52.97

Tax included.

Typical Applications

  • Lighting circuits

  • Small office and home appliances

Product Overview

The Shelly 1 Mini Gen4 is an ultra-compact, next-generation smart switch designed to control lighting and small electrical appliances up to 8A. Powered by the Shelly chip, it offers true multi-protocol connectivity, supporting Wi-Fi, Zigbee, Bluetooth, and Matter for seamless integration across smart home ecosystems.

Its miniature form factor allows it to be easily installed behind wall switches, power sockets, and inside standard electrical wall boxes, making it ideal for both new installations and retrofits.

Control and monitor your devices directly from your smartphone or tablet using the intuitive Shelly mobile app, and connect to your home Wi-Fi network for simple, reliable automation and remote access.

Key Features

  • Compact design – Ultra-small form factor for tight installation spaces

  • Multi-protocol connectivity – Wi-Fi, Bluetooth, Zigbee, and Matter support

  • Matter certified – Compatible with any Matter-enabled smart home ecosystem

  • Apple HomeKit support – Control devices using the Apple Home app or Siri

  • Mobile app control – Manage devices remotely from your phone or tablet

Specifications

Physical

  • Size (H × W × D): 29 × 34 × 16 ±0.5 mm

  • Weight: 19 ±1 g

  • Mounting: Wall box

  • Housing material: Plastic

Environmental

  • Operating temperature: -20 °C to 40 °C

  • Humidity: 30% to 70% RH

  • Max. altitude: 2000 m

Electrical

  • Power supply: 110–240 VAC

  • Relay: Dry, normally open (NO), 1-pole, micro contact

  • Power consumption: < 1.2 W

  • External protection:

    • Tripping characteristic B or C

    • Max. rated current: 10A

    • Min. interrupting rating: 6 kA

    • Energy limiting class 3

Output Circuit Ratings

  • Max. switching voltage: 240 VAC / 30 VDC

  • Max. switching current: 8 A at 240 VAC / 5 A at 30 VDC

  • Max. output power: 2000 W at 240 VAC / 150 W at 30 VDC

  • Voltage protection / cutoff: No

  • Current protection / cutoff: No

  • Max. power protection / cutoff: No

Sensors & Meters

  • Internal temperature sensor: Yes

Wireless Connectivity

Wi-Fi

  • Protocol: 802.11 b/g/n/ax

  • RF band: 2412–2472 MHz

  • Max. RF power: < 20 dBm

  • Range: Up to 30 m indoors / 50 m outdoors (depending on conditions)

Bluetooth

  • Protocol: 5.0

  • RF band: 2402–2480 MHz

  • Max. RF power: < 4 dBm

  • Range: Up to 10 m indoors / 30 m outdoors (depending on conditions)

Zigbee

  • Max. RF power: < 20 dBm

  • Range: Up to 100 m indoors / 300 m outdoors (depending on conditions)

Hardware

  • CPU: ESP-Shelly-C68F

  • Flash memory: 8 MB

Firmware & Integration

  • MQTT support: Yes

Safety & Compliance

Maximum Load refers to the device’s maximum rated capacity. Continuous operation at or near this limit is not recommended and should only be used for short durations. Higher loads require sufficient allowance for heat dissipation.

Compliant with Australia and New Zealand Safety Standards (AS/NZS).
SDoC available on request.
