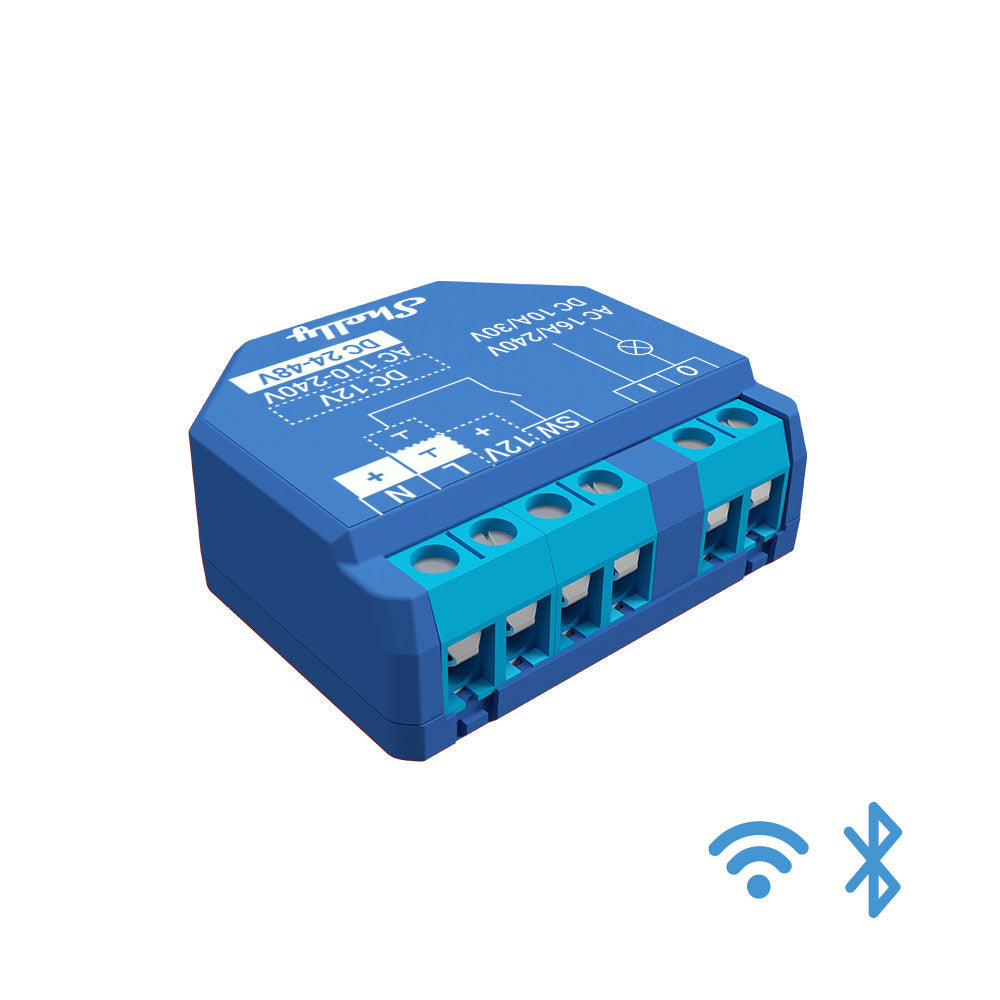

WiFi-operated relay switch, 1 channel 16A
Control wide range of home appliances and office equipment (lights, power lines, security systems, heating radiators, air conditioners, etc.) from anywhere with the smallest WiFi-operated relay switch, with Bluetooth connection
- Wi-Fi operated - Connects to your Wi-Fi network. No HUB required!
- Bluetooth - Add devices quick and easy via Bluetooth connection, using Shelly Cloud App
- Dry contacts
- Low voltage support
- Extremely fast processor – ESP32
- Enhanced safety - Over-temperature protection
- Enhanced security - MQTT and WSS support, TLS and custom certificates support
- Improved API interface
Shelly smart relays now come with perfected electrical appliances control through an extremely fast processor, quicker connectivity, improved integration, and enhanced safety! You can now add devices easily via Bluetooth connection, using Shelly Cloud App. Shelly Plus line supports TLS encryption and has an improved shell for standardized support for external sensor plugs.
| POWER | |
| Power supply AC | 110-230V ±10%, 50/60Hz |
| Maximum load | 16A |
| Power supply DC | 24 – 240V / 12V stabilized |
| Channels | 1 Channel |
| SPECIAL FUNCTIONS | |
| Dry contacts | Yes |
| Roller shutter mode | No |
| Device temperature protection | Yes |
| Overload protection | No |
| Power measurement | No |
| Working without a neutral line | No |
| FEATURES | |
| HTTP/HTTPS webhooks | Yes |
| Custom scripts (mJs) | Yes |
| Operational temperature | -20°C to + 40 °C |
| Device power consumption | < 1 W |
| Intelligent On/Off | Yes |
| Local and remote control | Yes |
| Sunrise/Sunset | Yes |
| Weekly Schedule | Yes |
| UL Listed option | No |
| CONNECTIVITY | |
| Wireless | Yes |
| Wi-Fi Protocol | 802.11 b/g/n |
| Wi-Fi Radio frequency | 2412 - 2484 MHz |
| Wi-Fi Radio signal power | 1mW |
| Wi-Fi Range | up to 50 m outdoors and up to 30 m indoors (depending on the building materials) |
| Bluetooth | Yes |
| DIMENSIONS | |
| Size | 42 x 38 x 17mm |
