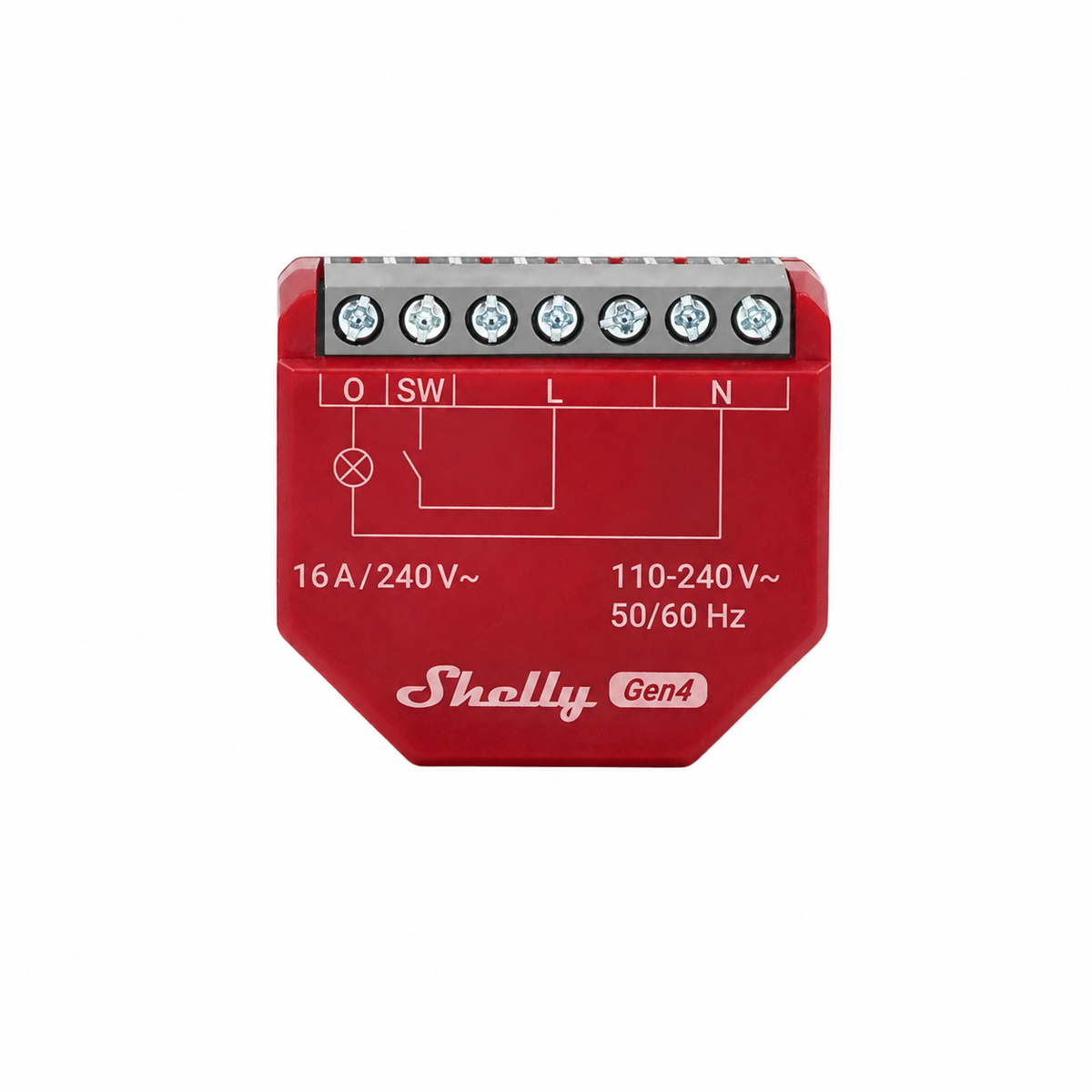

• Shelly 1PM Gen4 ANZ smart relay with power monitoring
  • Shelly 1PM Gen4 ANZ AC wiring diagram
1 2

Fernwood Tech

Shelly 1PM Gen4 ANZ – Smart Switch with Power Monitoring

Shelly 1PM Gen4 ANZ – Smart Switch with Power Monitoring

$89.99 NZD
$89.99 NZD
Sale Sold out
Taxes included.

ANZ-certified model for Australia and New Zealand.

The Shelly 1PM Gen4 ANZ is a compact smart relay with real-time power monitoring. It combines Wi-Fi, Zigbee, Bluetooth and Matter for control and automation of lighting, heating, appliances and other electrical loads.

Important: This ANZ version is rated and certified for 110–240 V AC supply and AC switching only. It is not specified or certified for DC supply or DC switching.

Key features

  • Real-time voltage, current, power and energy monitoring
  • Wi-Fi, Zigbee, Bluetooth 5.0 and Matter connectivity
  • Works with Apple Home, Google Home, Alexa, SmartThings and Home Assistant
  • Wi-Fi and Zigbee range extender, plus Bluetooth gateway
  • Schedules, scenes, webhooks, scripting, MQTT, KNXnet/IP and virtual components
  • Overheating, overvoltage, overcurrent and overpower protection
  • Compact retrofit design for wall boxes and other tight spaces

ANZ electrical specifications

Model S4SW-001P16EU
Power supply 110–240 V AC, 50/60 Hz
Neutral required Yes
Power consumption < 1 W
Maximum switching voltage 240 V AC
Maximum switching current 16 A at 240 V AC
Dimensions 37 × 42 × 16 mm
Operating temperature −20 °C to 40 °C

Inductive loads require an RC snubber. External circuit protection is required. Installation on mains wiring must be carried out by a suitably qualified electrical worker in accordance with local regulations.
