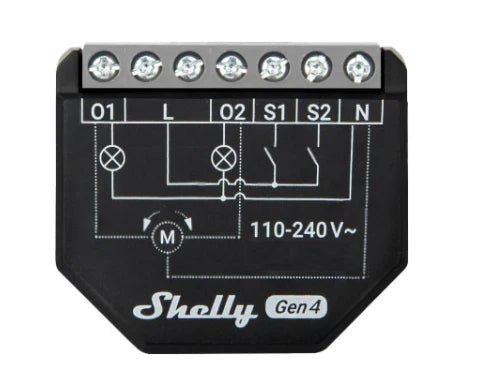

Shelly 2PM Gen4

Shelly 2PM Gen4

$120.00 NZD
$120.00 NZD
Sale Sold out
Taxes included.
  • Multiprotocol connectivity: Choose from Zigbee, Bluetooth, Wi-Fi and Matter
  • 2 channels on the same phase
  • Power metering on each channel
  • Cover (roller) control - Automate and adjust the position of roller shutters, blinds, curtains, awnings, bi-directional AC motors.
  • Slats angle control - use with your venetian blinds and control the tilt position (angle) of slats to adjust the amount of light in a room.
  • Apple Homekit support: Control connected devices using Apple Home app or Siri through Matter
  • Perfect to retrofit behind existing switches and sockets
  • Supports schedules, scenes and local actions
  • Supports scripting, HTTPS, MQTTS, Inbound and Outbound Web Sockets
  • Internal temperature sensor for overheating protection
  • Wi-Fi & Zigbee range extender & Bluetooth gateway
  • Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform.

Specifications

Quantity

Value

Physical

Size (HxWxD):

37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 inch

Weight:

30 g / 1.06 oz

Screw terminals max torque:

0.4 Nm / 3.5 lbin

Conductor cross section:

0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)

Conductor stripped length:

6 to 7 mm / 0.24 to 0.28 in

Mounting:

Wall box

Shell material:

Plastic

Shell color:

Black

Terminals color:

Grey (Mouse Grey)

Environmental

Ambient working temperature:

-20°C to 40°C / -5°F to 105°F

Humidity:

30% to 70% RH

Max. altitude:

2000 m / 6562 ft

Electrical

Power supply:

110 - 240 V~ / 24 VDC ±10%

Power consumption:

< 1.4 W

External protection:

Tripping characteristic B or C,
16A max. rated current,
min. 6 kA interrupting rating,
energy limiting class 3

Output circuits ratings

Max. switching voltage:

  • 240 V~

  • 30 V⎓

Max. switching current AC:

10 A (per channel), 16 A (total), 18 A (total peak)

Max. switching current DC:

10 A

Sensors, meters

Voltmeter (AC):

Yes

Ammeter (AC):

Yes

Internal-temperature sensor:

Yes

Radio

Wi-Fi

Protocol:

802.11 b/g/n/ax

RF band:

2412 - 2472 МHz

Max. RF power:

< 20 dBm

Range:

Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors
(Depends on local conditions)

Bluetooth

Protocol:

5.0

RF band:

2402 - 2480 MHz

Max. RF power:

< 4 dBm

Range:

Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors
(Depends on local conditions)

Zigbee

Protocol:

802.15.4

RF bands:

2400 to 2483.5 MHz

Max. RF power:

< 20 dBm

Range:

Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors
(Depends on local conditions)

Microcontroller unit

CPU:

ESP-Shelly-C68F

Flash:

8MB

Firmware capabilities

Schedules:

20

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

Yes

MQTT:

Yes
