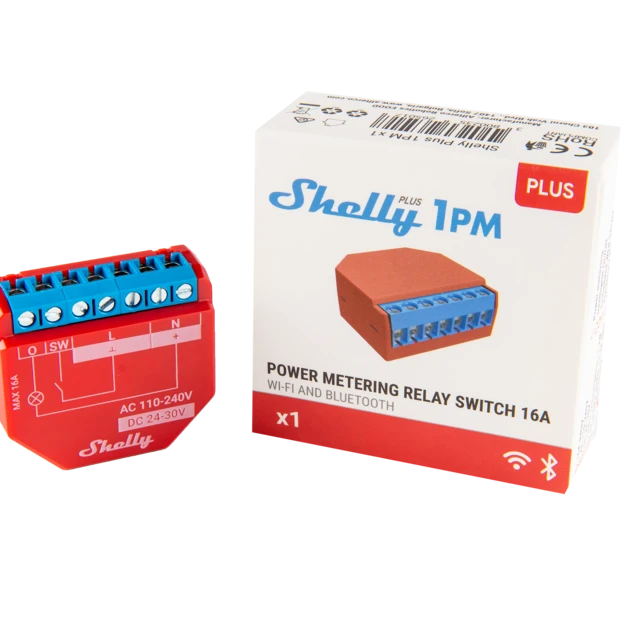

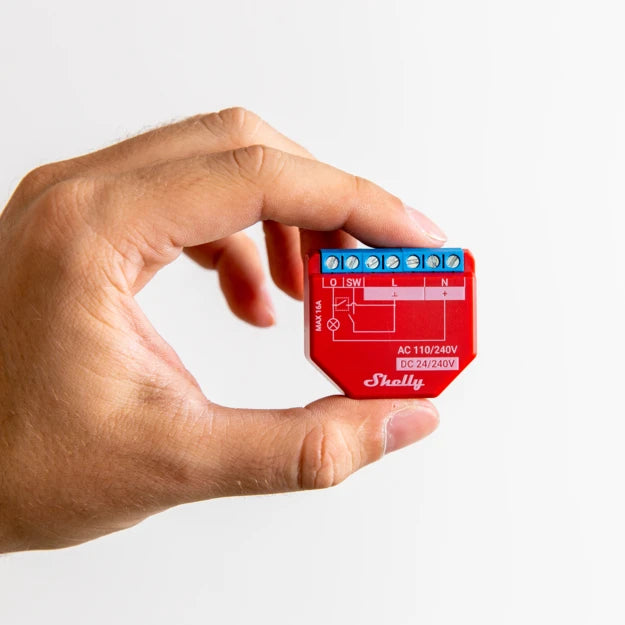

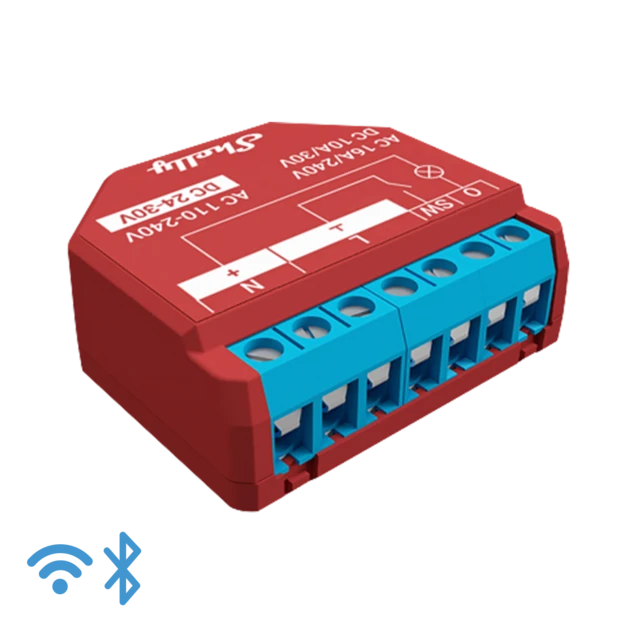

WiFi-operated relay switch, 1 channel 16A, with Power Metering
Control and measure power consumption for wide range of home appliances and office equipment (lights, power lines, security systems, heating radiators, air conditioners, etc.) from anywhere with the smallest WiFi-operated relay switch, with Bluetooth connection
Wi-Fi operated - Connects to your Wi-Fi network. No HUB required!
- Bluetooth - Add devices quick and easy via Bluetooth connection, using Shelly Cloud App
- Power metering with data storage
- Wide range of voltages supported
- Extremely fast processor - ESP32
- Enhanced safety - Overpower, overvoltage and over-temperature protection
- Enhanced security - MQTT and WSS support, TLS and custom certificates support
- Improved API interface
Next Generation Shelly
Enjoy supreme home automation and control with the new generation Shelly devices - Shelly Plus!
Shelly smart relays now come with perfected electrical appliances control through an extremely fast processor, quicker connectivity, improved integration, and enhanced safety! You can now add devices easily via Bluetooth connection, using Shelly Cloud App. Shelly Plus line supports TLS encryption and has an improved shell for standardized support for external sensor plugs.
WARNING:
All electrical work must be carried out by a licensed electrician under the electrical safety act and AS/NZS300. Doing your own electrical can be dangerous.
POWER
Power supply AC
110-230V 10%, 50/60Hz
Maximum load
16A
Power supply DC
24 - 240V
SPECIAL FUNCTIONS
Dry contacts
No
Roller shutter mode
No
Device temperature protection
Yes
Overload protection
Yes
Power measurement
Yes
Working without a neutral line
No
FEATURES
HTTP/HTTPS webhooks
Yes
Custom scripts(mJs)
Yes
